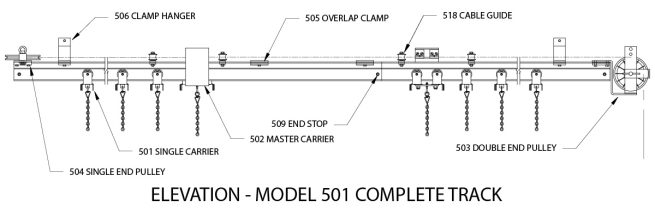

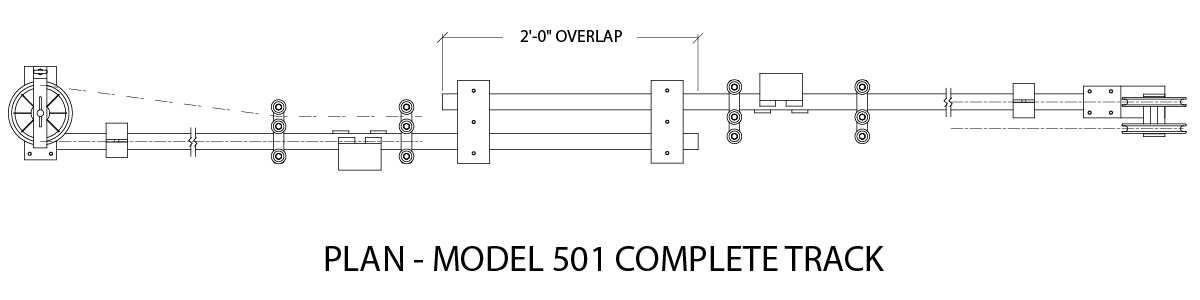

H&H 500 Series is a heavy-duty track that can be used for straight or curved applications in TV studios, theatres, and many other types of facilities. Curves are typically formed at the factory to suit your project requirements. Walk-along tracks can be curved to virtually any shape or length. Cord operated tracks can be rigged with serpentine or reverse curves. The 500 Series is most often motorized, or manually cord operated for short runs and light weight curtains.
The ease of operation of a 500 Series track is dependent on several factors, including the radius of the curve and whether reverse bends are part of the track layout. In general, the track operates best around a gentle curve. Whenever possible, it is recommended that layouts be designed with radius of 4 feet, or larger. Tighter curves will result in a system that requires additional effort to operate.
2 urethane-tired sealed ball bearing wheels riveted to plated steel body with heavy-duty hook, swivel and 6" trim chain. Nylatron glide strips and rubber bumper reduce friction and noise.
No. 501 - Zinc plated.
N0. 501B - Black finish.
501XB
No. 501 urethane-tired sealed ball bearing carrier with arm for use with 526 Carrier Stop.
No. 501X - Zinc Plated.
No. 501XB - Black finish.
502B
2 urethane-tired sealed ball bearing wheel assemblies pivot on formed steel body with 2 clamps for anchoring line or cable. 1 pair required for overlapping tracks.
No. 502 - for 3/8" operating line.
no-502b-black-finish-no-502mb-black-finish
502AB
Formed steel bracket to allow curtain to travel under single end pulley.
No. 502A - Zinc plated.
No. 502AB - Black finish.
503B
6" diameter Nylatron GS sheaves with sealed precision ball bearings. Heavy-duty steel housing clamps to top flange of track.
4" diameter Nylatron GS sheave grooved for 3/16" cable with sealed precision ball bearings. Heavy-duty steel housing clamps to top flange of track. Black finish.
No. 504A
504TB
4" diameter Nylatron GSM sheave with sealed precision ball bearings grooved for 3/16" cable. Heavy-duty steel housing clamps to top flange of track and provides constant cable tension on large motorized tracks.
No. 504T - Zinc plated.
No. 504TB - Black finish.
505B
Formed steel clamps to align track at overlap. 1 set pictured.
No. 505 - Zinc plated.
No. 505B - Black finish.
506B
Formed steel bracket for suspending track. Track clamps to bracket with offset clips.
No. 506 - Zinc plated.
No. 506B - Black finish.
507B
Steel plates align and lock track sections together. Track must be straight at joint. 1 pair pictured.
No. 507 - Zinc plated.
No. 507B - Black finish.
507FX
Hardened tool steel drill fixture for field drilling of track for 507 splices.
No. 507FX
508
6" diameter Nylatron GS sheave with sealed precision ball bearings in heavy-duty steel housing with 9" vertical adjustment. Grooved to accept 3/8" operating line.
No. 508
509B
Bolt with steel spacers to prevent carriers from traveling beyond desired location. 2 pair required for overlapping tracks.
No. 509 - Zinc plated.
No. 509B - Black finish.
509AB
Formed steel bracket attaches to bottom of track. 6" trim chain to support offstage edge of curtain.
No. 509A - Zinc plated.
No. 509AB - Black finish.
510B
6063-T5 extruded aluminum 1-5/8" wide x 3-1/4" high, .187" thick. 20' and 24' stock lengths.
No. 510 - Mill finish.
No. 510B - Class 1 black anodized.
511B
Formed steel bracket mounts to ceiling. Track clamps to bracket with offset clips.
No. 511 - Zinc Plated.
No. 511B - Black finish.
514
3/8" diameter black polyester braided over Dyneema core for manual operation.
No. 514
515
Black polyester jacket braided over 3/32" specialty cord wire rope. For use with motorized tracks.
No. 515
516B
2 nylon-tired sealed ball bearing wheels riveted to plated steel body with heavy-duty hook, swivel and 6" trim chain. Nylatron glide strips and rubber bumper reduce friction and noise.
No. 516 - Zinc Plated.
No. 516B - Black finish.
516XB
No. 516 nylon-tired sealed ball bearing carrier with arm for use with 526 Carrier Stop.
No. 516X - Zinc Plated.
No. 516XB - Black finish.
517B
2 nylon-tired sealed ball bearing wheel assemblies pivot on formed steel body with 2 clamps for anchoring line or cable. 1 pair required for overlapping tracks.
3 Nylatron GS rollers mounted to steel bracket. Bracket mounts to track with offset clips. Suggested spacing: 5'. Additional guides required at each curve.
Steel housing contains 6" diameter Nylatron GS sheaves with sealed precision ball bearings. Used when operating lines or cable must be turned horizontally.
No. 521
526B
Used with 501X or 516X single carriers to keep offstage edge of curtain from traveling past desired position on track.
No. 526 - Zinc plated.
No. 526B - Black finish.
531B
Steel plate mounts flush to ceiling. Track clamps to bracket with offset clips. For use on walk-along tracks only.
No. 531 - Zinc plated.
No. 531B - Black Finish.
502WB
2 single carriers pivot on steel connecting plate with heavy-duty hook, swivel and trim chain.
No. 502W - Urethane-tired wheels.
no-502wb-black-finish-no-517wb-black-finish
537
Heavy steel construction with nylon-tired ball bearing wheels and brake to keep master carrier in desired location. Equipped with swivels and trim chains for curtain attachment.
No. 537
50
Heavy steel construction with nylon-tired ball bearing wheels. Supplied with brackets for 1-3/8" O.D. pipe or tubing (6' max. recommended length). Allows masking draperies to be rotated to any angle. Working Load Limit: 60 pounds.
No. 50
50XB
Pivot device with special plate to index rotation at 22-1/2 degree increments. Supplied with brackets for 1-3/8" O.D. pipe or tubing (6' max. recommended length). Working Load Limit: 60 pounds.
No. 50X - Zinc plated.
No. 50XB - Black finish.
50BK
Spring equipped arm with neoprene pad. Add to pivot device to prevent movement along track.
