H&H Product Series
Arbors
An arbor is a carriage that is designed to hold counterweights to balance the load on a pipe batten. Once an arbor is loaded properly, it can be raised or lowered with a minimum amount of effort. Arbors are available in many styles depending on application and budgetary concerns.
Blocks
Mule blocks are designed to change direction of the lift line between the loft block and and head block. Mounting conditions vary and the applied load needs to be considered in every application.
Series 53 Underhung Head Block
Series 81 / Series 83 Mule Blocks
Series 74 Sliding Tension Block
Series 73 Wire Guide Floor Block
Series 71 Combination Adjustable Floor Block / Rope Lock
Series 70G Tension Block Guide Shoe
Series 70 Tension Block
Double Purchase Head Blocks
Series 55 Underhung Head Block
Series 30 Underhung Loft Blocks
Guide Wall
A Jay Bar Guide System is a system of aluminum guides braced to a wall below the headblock on which a series of counterweight arbors are guided up and down during counterweight rigging operation. These systems are rigid systems, and must be used on applications that exceed 30 feet. This style captures the arbor between aluminum jay bars. The system consists of multiple components: Model 662 Knee Brace Model 664 Horizontal Wall Batten Model 666 Aluminum Jay Bar Model 667 Arbor Stop Angle

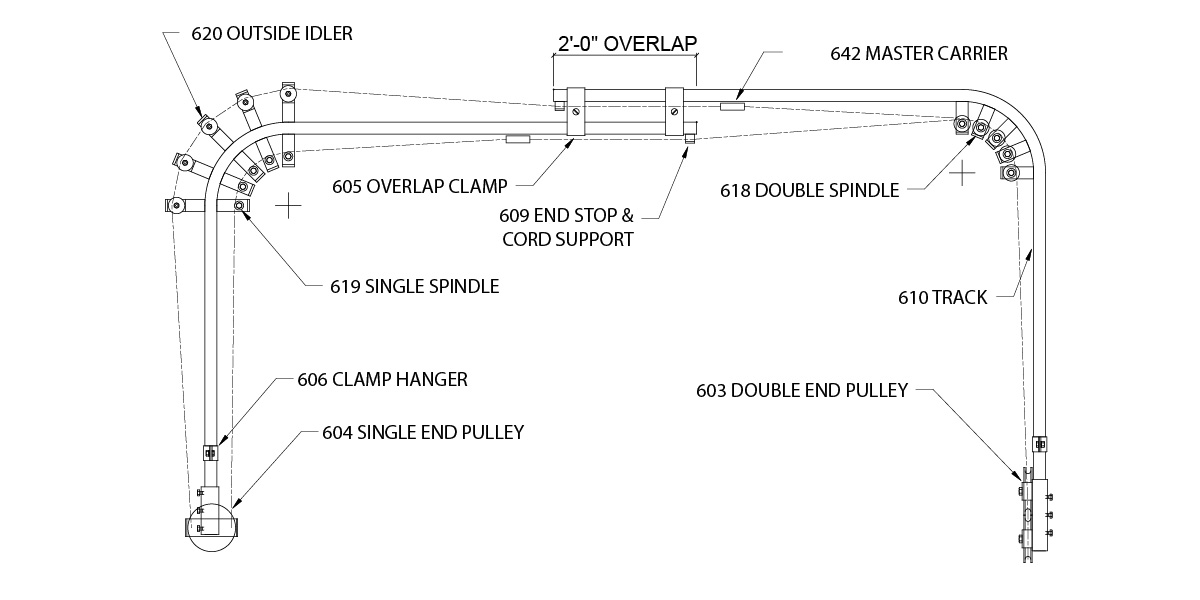

Track Systems
Known for our exceptional quality in raw materials and in our manufacturing process, H&H is the go-to brand for performance center track systems. Individual bi-parting, one-way, or walk-along curtain tracks can be ordered on an even per-foot basis and supplied with components for normal operation.
